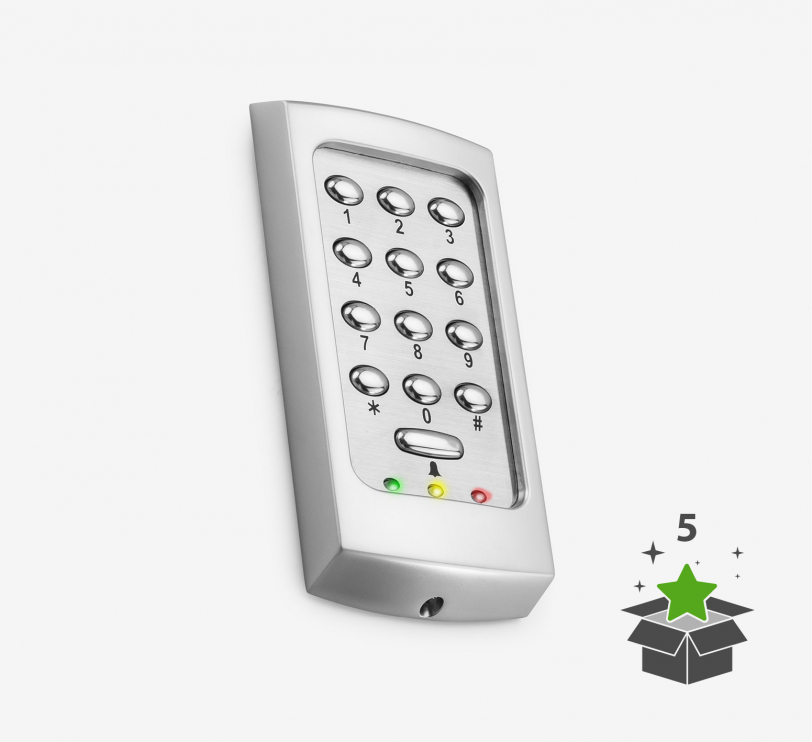

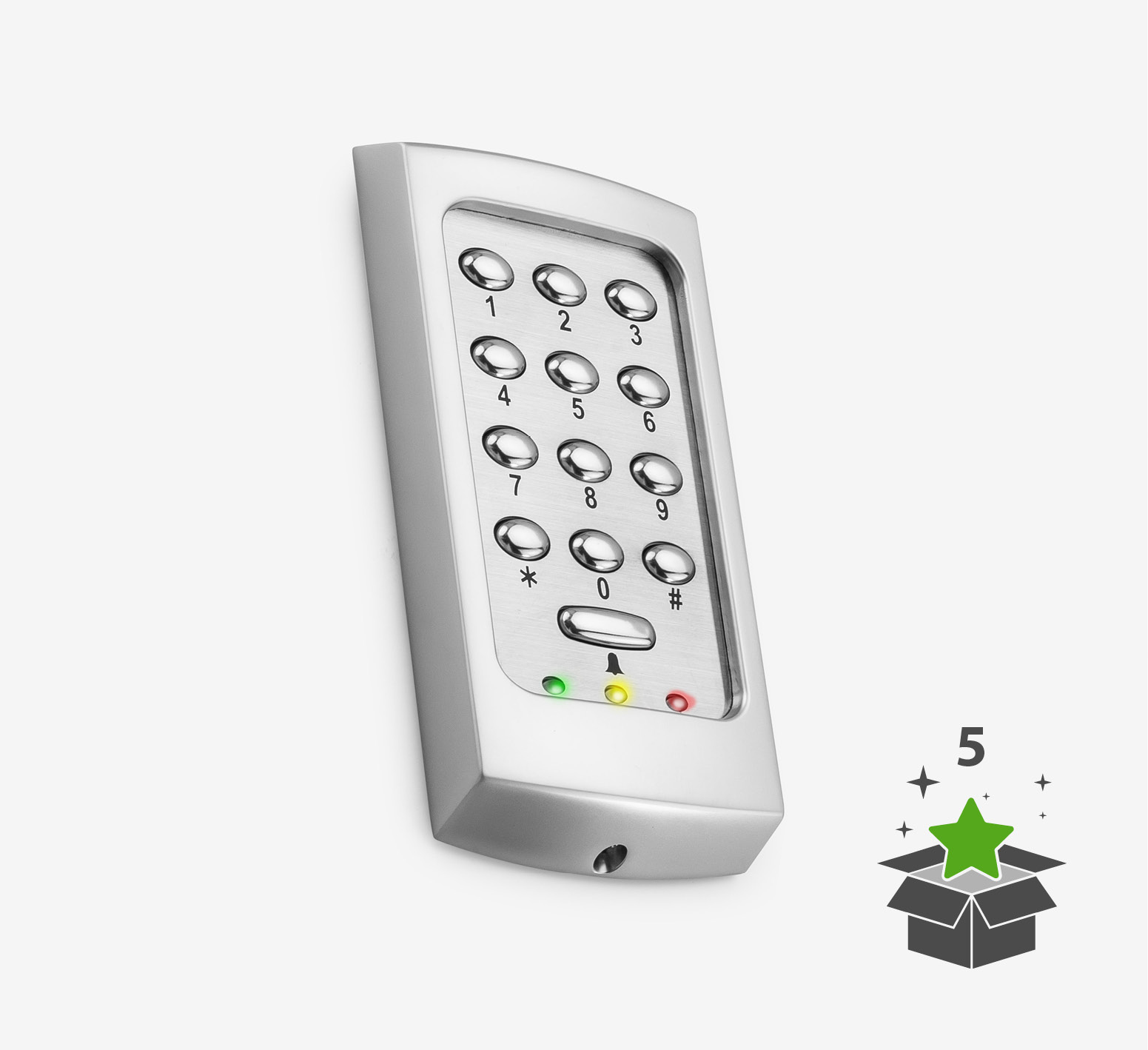

Compact touchlock keypad – K75, stainless steel keypad

About – Compact is a single door access control system. All of the electronics are within the housing of the keypad.

Installation – The compact keypad has two wires which connect to the lock and two wires which connect to the power supply. There are two wires for connection to an exit button if required. The cable exits centrally from the back of the keypad making drilling and mounting very accurate. All settings and codes are programmed via the keypad using the master code. The K series keypads have two wires which can connect to a sounder, to act as a doorbell when the ‘bell’ key is pressed.

Operation – If a valid code is entered access is granted. Codes are changed via the keypad using the master code.
